SpiroCross-R -Steel -Magnet -F(PN16)

Magnet
6 Bar
Max 110°C

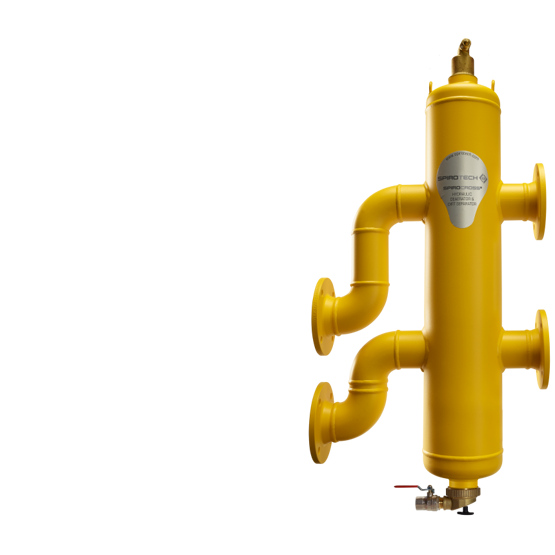

A steel hydraulic (air) deaerator and dirt separator including an internal magnet with a DN65 or DN100 flange connection, developed for Remeha

The benefits of the XC-RM SpiroCross-R dirt separator & deaerator with a magnet and with hydraulic balancing (developed for Remeha)

  • Three functions in a single component
  • Just four connections instead of eight
  • Optimal hydraulic balance between primary and secondary pumps
  • SpiroTube guarantees minimal fluid mixing and thus the best temperature differential
  • Real, active deaeration and dirt separation
  • Very small particles, from 5 μm (= 0.005 mm), are separated and removed
  • Including a magnet for extra protection and high efficient removal of magnetite
  • Constant low pressure drop
  • Compact design and limited build height, thanks to the SpiroTube
  • PN16 flange connections
  • Connection diameters DN65 or DN100
  • Exceptional guarantee

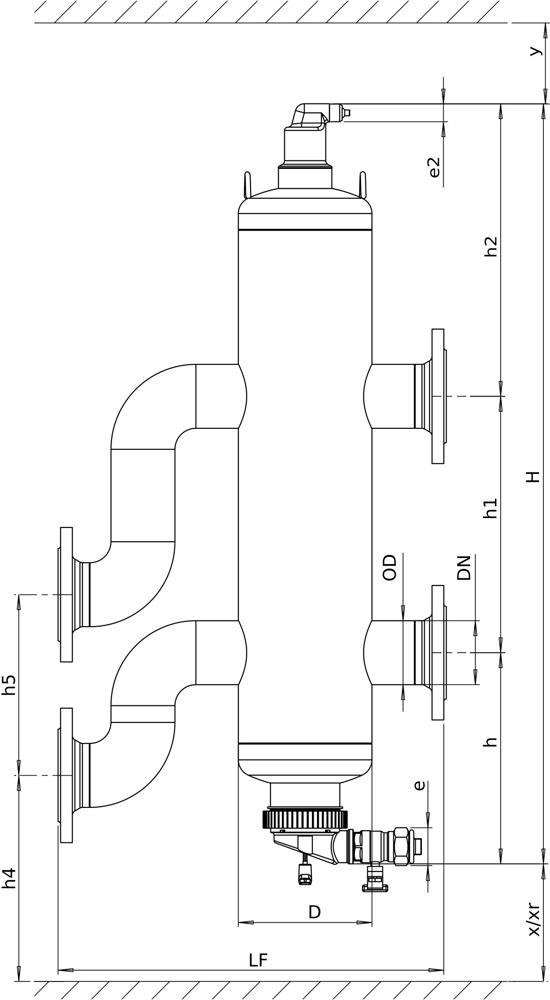

Variation specifications

CONNECTION
