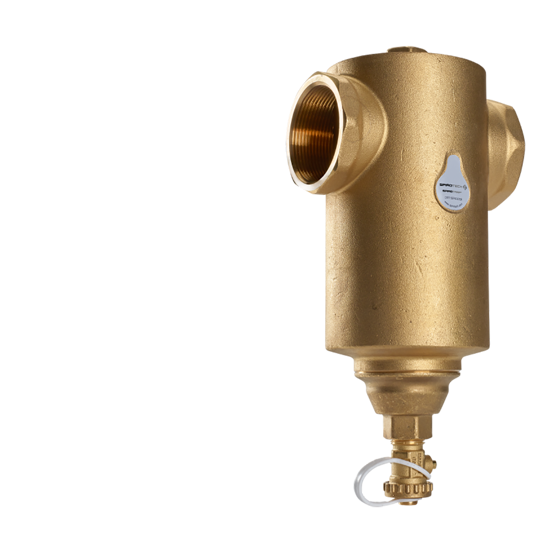

SpiroTrap -Brass -Hor

10 bar
Max 110°C

A brass dirt separator with a 22 mm - 2" horizontal connection

Benefits of the AE SpiroTrap dirt separators

  • Very small particles, from 5 μm (= 0.005 mm) are separated and removed
  • Dirt can be drained while the system is in operation
  • No shut-off valves or bypass required
  • Constant low pressure drop
  • Maintenance only takes a few seconds and is not a dirty job compared to a filter solution
  • Applicable with 50/50 Ethylene Glycol / Water (Volume)
  • No unnecessary downtime
  • Horizontal connections
  • Connection diameters from 22 mm to 2" (G2)

Variation specifications

CONNECTION

ETIM Specifications

The positioning of a dirt separator in your system

Dirt separators are preferably positioned just before the systemwater enters the heating or cooling unit (return) in your system, capturing all of the dirt before it gets into the components.

Positioning of Spirotech SpiroTrap
