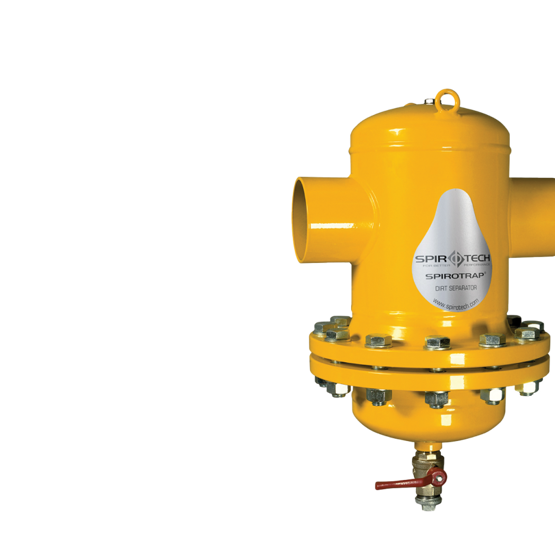

SpiroTrap -Steel -Weld -Demount

10 Bar
Max 110°C

A demountable steel dirt separator for standard flow rate (1.5 m/s) with a DN50 - DN150 weld connection

The benefits of the BF-L SpiroTrap dirt separators

  • Very small particles, from 5 μm (= 0.005 mm) are separated and removed
  • Dirt can be drained while the system is in operation
  • No shut-off valves or bypass required
  • In case of severe polution and/or maintenance, the unit is demountable
  • Constant low pressure drop
  • Maintenance only takes a few seconds and is not a dirty job compared to a filter solution
  • No unnecessary downtime
  • Weld connections
  • Connection diameters from DN50 - DN300, larger connection diameters on request

Variation specifications
