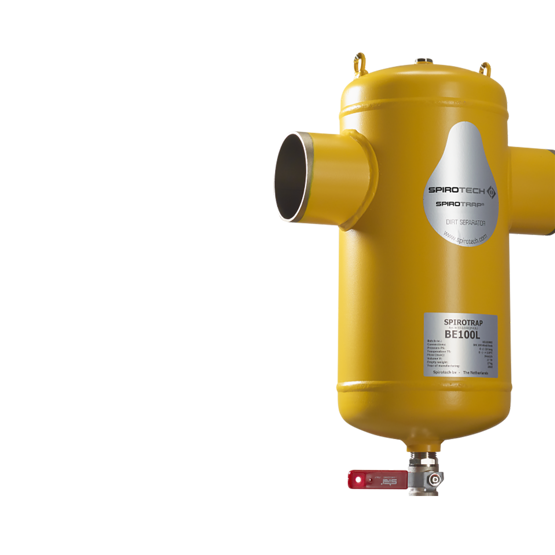

SpiroTrap -Steel -Weld

10 bar
Max 110°C

A steel dirt separator for standard flow rate (1.5 m/s) with a DN50 - DN150 weld connection

The benefits of the BE-L SpiroTrap dirt separators

  • Very small particles, from 5 μm (= 0.005 mm) are separated and removed
  • Dirt can be drained while the system is in operation
  • No shut-off valves or bypass required
  • Applicable with 50/50 Ethylene Glycol / Water (Volume)
  • Constant low pressure drop
  • Maintenance only takes a few seconds and is not a dirty job compared to a filter solution
  • No unnecessary downtime
  • Weld connection
  • Connection diameters from DN50 to DN 150, larger connection diameters on request

Variation specifications

CONNECTION

ETIM Specifications

The positioning of a dirt separator in your system

Dirt separators are preferably positioned just before the systemwater enters the heating or cooling unit (return) in your system, capturing all of the dirt before it gets into the components.

Positioning of Spirotech SpiroTrap
