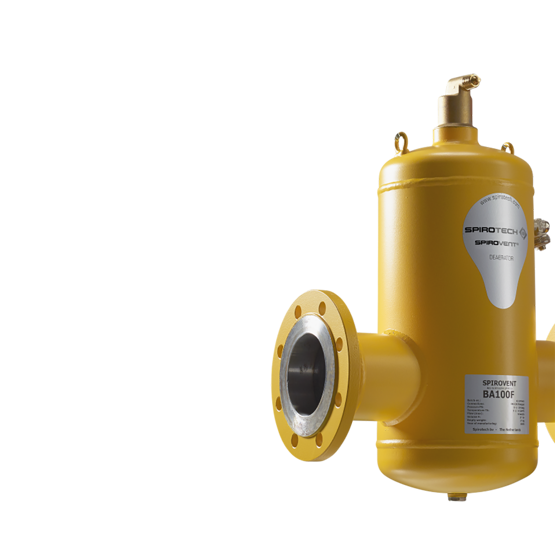

SpiroVent -Steel -F(PN16)

10 Bar
Max 110°C

A steel (microbubble) deaerator for standard flow rate (1.5 m/s) with a DN50 - DN300 PN16 flange connection

The benefits of the BA-F SpiroVent Deaerators

  • Removes all circulating air and microbubbles effectively
  • Removes trapped air when installed at the correct location
  • Greatly reduces the need for manual venting
  • Applicable with 50/50 Glycol / Water (Volume)
  • Constant low-pressure drop
  • No unnecessary shutdown
  • PN16 Flange connections
  • Connection diameters from DN50 to DN300, larger diameters available on request
  • Exceptional guarantee

Variation specifications

CONNECTION

ETIM Specifications

The positioning of a SpiroVent air deaerator in the system

SpiroVent Air deaerators are preferably positioned at the hottest point of the installation, the point where the water leaves the heater or where the water enters the cooler.
