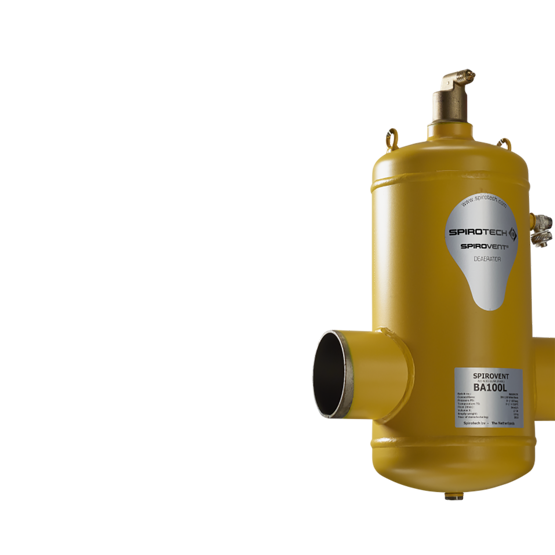

A steel (air) deaerator for standard flow rate (1.5 m/s) with a DN50 - DN150 weld connection
| Diameter: | DN 50 |
| DN | DN 50 |
| OD | 60.3 |
| D | 159 |
| L/LF | 260 |
| y | >50 |
| e1 | G3/4 |
| e2 | R1/2 |
| h | 120 |
| h1 | 350 |
| x | >50 |
| Diameter: | DN 65 |
| DN | DN 65 |
| OD | 76.1 |
| D | 159 |
| L/LF | 260 |
| y | >50 |
| e1 | G3/4 |
| e2 | R1/2 |
| h | 130 |
| h1 | 340 |
| x | >50 |
| Diameter: | DN 80 |
| DN | DN 80 |
| OD | 88.9 |
| D | 219 |
| L/LF | 370 |
| y | >50 |
| e1 | G3/4 |
| e2 | R1/2 |
| h | 150 |
| h1 | 430 |
| x | >50 |
| Diameter: | DN 100 |
| DN | DN 100 |
| OD | 114.3 |
| D | 219 |
| L/LF | 370 |
| y | >50 |
| e1 | G3/4 |
| e2 | R1/2 |
| h | 160 |
| h1 | 420 |
| x | >50 |
| Diameter: | DN 125 |
| DN | DN 125 |
| OD | 139.7 |
| D | 324 |
| L/LF | 525 |
| y | >50 |
| e1 | G3/4 |
| e2 | R1/2 |
| h | 195 |
| h1 | 555 |
| x | >50 |
| Diameter: | DN 150 |
| DN | DN 150 |
| OD | 168.3 |
| D | 324 |
| L/LF | 525 |
| y | >50 |
| e1 | G3/4 |
| e2 | R1/2 |
| h | 210 |
| h1 | 540 |
| x | >50 |
SpiroVent Air deaerators are preferably positioned at the hottest point of the installation, the point where the water leaves the heater or where the water enters the cooler.
