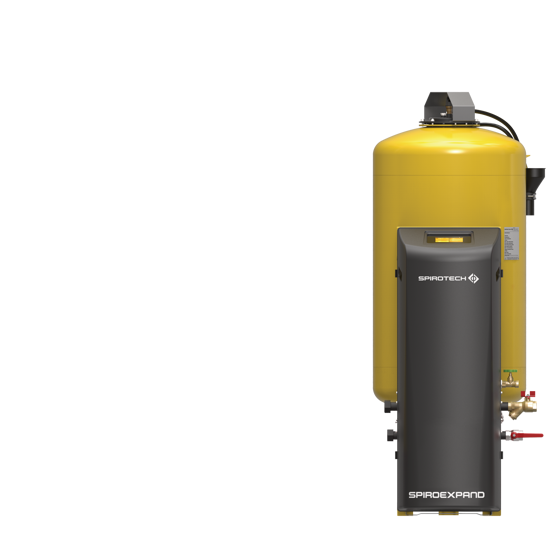

SpiroExpand MultiControl Kompakt DUO

The MultiControl Kompakt DUO is an automatic expansion and pressure-maintaining device, with 2 pumps (2x 50%) and an overflow valve. An unpressurised expansion tank is integrated.

The properties of the Multicontrol Kompakt DUO:

  • contains 2 pumps (2x 50%)
  • contains 1 overflow valve (1x 100%)
  • Operational pressure range up to 8.1 bar
  • Comes with vessel volumes from 45 to 500 liters
  • Two further vessels can be added.
  • Maximum expansion volume: 75 – 1,500 litres
  • The maximum temperature at the point of connection: 70°C (over 70°C possible with auxiliary tank)
  • Maximum safety temperature in the system: 110°C
  • Maximum operating pressure (PN): 10 bar

Product variants

Choose the desired variant below for all (technical) product data!

Article number EMCK-D125-4.0
Product type EMCK Duo 125L max 4bar
