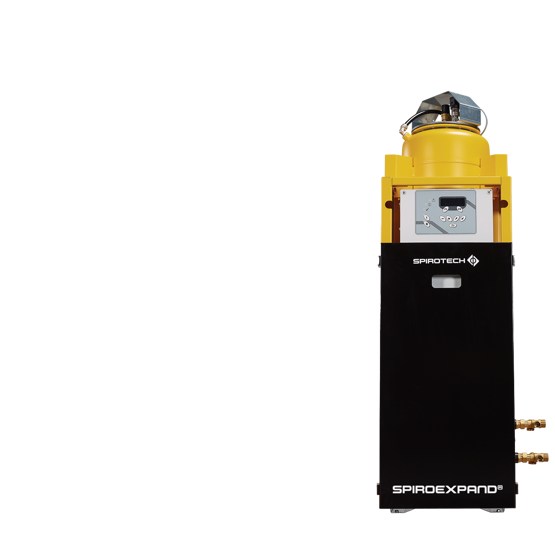

SpiroExpand PicoControl Kompakt SOLO

The PicoControl Kompakt SOLO is a compact automatic expansion and pressure-maintaining device. The unit contains 1 pump (1x 100%) and an overflow valve. An unpressurised expansion tank is integrated.

The properties of the PicoControl Kompakt SOLO:

  • 1 pump (1x 100%)
  • 1 overflow valve (1x 100%)
  • Operational pressure range up to 4.0 bar
  • 6 possible expansion tank volumes: 45 - 500 liters
  • Maximum expansion volume: 45 – 1,500 liters
  • The maximum temperature at the point of connection: 70°C (over 70°C possible with intermediate vessel)
  • Maximum safety temperature in the system: 110°C
  • Maximum allowable pressure (PN): 6 bar

Product variants

Choose the desired variant below for all (technical) product data!

Article number EPCK-S125-4.0
Product type EPCK Solo 125L max 4bar
