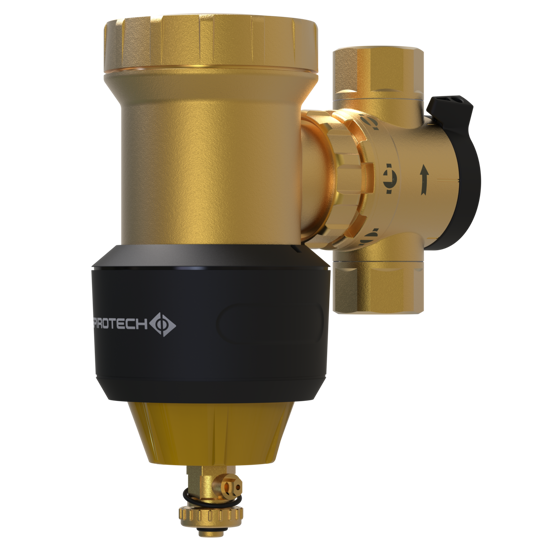

SpiroTrap HPF -Brass -Magnet -Filter -Uni
A brass heat pump filter with magnet and a 22 mm - 1¼" universal connection
The benefits of the SpiroTrap Heat Pump Filter
- Specially developed for heat pumps: optimally tailored to protect sensitive components
- Combination of three components: 160 µm filter, Spiro tube and powerful magnet
- Targeted dirt removal: captures both magnetic and non-magnetic dirt that can cause damage
- Bypass-free design: all system water flows through the filter, dirt cannot bypass it
- Maintenance via backflush mode: quick, clean and without dismantling or tools
- Fits within the standard maintenance interval of the heat pump: on average once every two years
- Intuitive MultiMode Swivel: with clear positions for operation, shut-off and flushing
- Easy to install: available in various connection sizes
- Robust brass housing: resistant to pressure and temperature changes
- 10-year warranty: long-term security for installer and end user
Product variants
Select the desired connection below and get all (technical) product data!
Article number
UE022XJF
Product type
SpiroTrap HPF -22mm -Magnet -Filter -Uni
The optimal position of a SpiroTrap dirt separator
To optimally protect your heating or cooling system, the correct placement of a dirt separator is essential. A dirt separator is preferably installed at the point where the system water enters the heating or cooling unit, usually in the return line.
Why on the return line?
- Here, the water flows back to the (sensitive) system components, such as pumps, heat exchangers and valves.
- Trapping debris at this point will prevent it from causing damage to these crucial parts.
- This not only improves the performance and lifespan of your system, but also reduces the risk of breakdowns and maintenance costs.
With a strategically placed dirt separator from Spirotech, your system stays clean, efficient and protected from contamination, even under the most demanding conditions. This way you ensure a problem-free and durable system.
